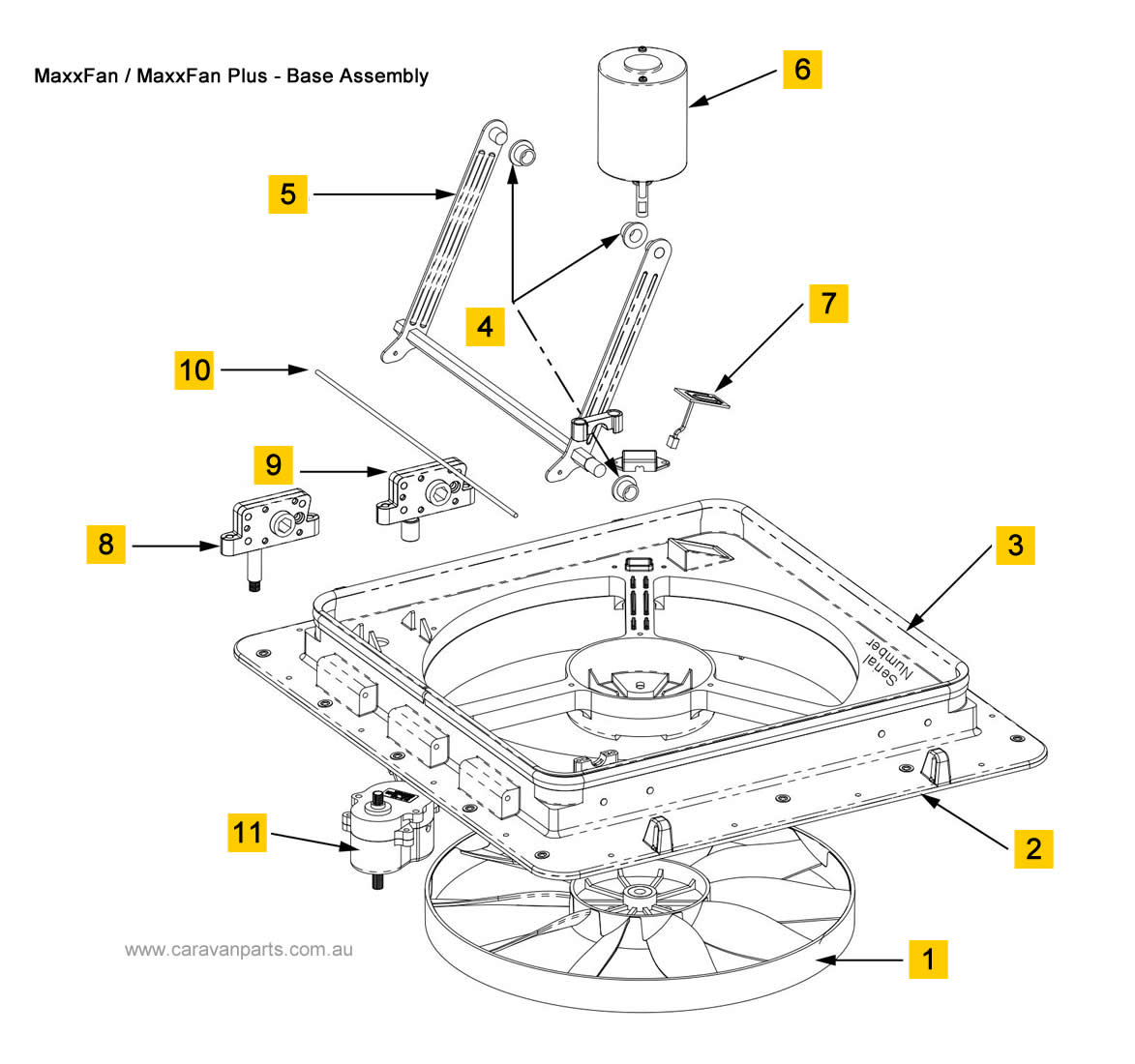

Spare Parts Diagram: MaxxFan / MaxxFan Plus - Base Assembly

For all MaxxFan and MaxxFan Plus
Key Pad Models 4000K through 4951K
and Key Pad / Network Models 4700N amd 4900N

Spare Parts Diagram: MaxxFan / MaxxFan Plus - Base Assembly

Please click here or on diagram to view in full size

Please note: Not all parts are individually for sale. Some may be included in an available product/kit.
Items not listed may be available by special order. Please contact us.

More details diagrams for this product can be found by clicking below:
   PARTS SUMMARY    |   CONTROL PLATE ASSEMBLY

Item #
Product

1
Fan Blade

Fan Blade
Suit MaxxFan / Maxx Fan Plus
 [1] $70.00

$70.00

More Info
7% OFF RRP $75.00
3
Rubber Seal

Rubber Seal
Suit MaxxFan / Maxx Fan Plus / MaxxFan Deluxe
 [3] $19.25

$19.25

More Info
7% OFF RRP $20.63
4
Bushing

Bushing
Suit MaxxFan / Maxx Fan Plus / MaxxFan Deluxe
 [4] $2.24

$2.24

More Info
7% OFF RRP $2.40
10
Hinge Pin

Hinge Pin
Suit MaxxFan / Maxx Fan Plus
 [10] $8.42

$8.42

More Info
6% OFF RRP $9.00
11
Lift Motor

Lift Motor
Suit MaxxFan / Maxx Fan Plus / MaxxFan Deluxe
 [11] $56.98

$56.98

More Info
7% OFF RRP $61.05
