One of the most useful and versatile table leg systems around!

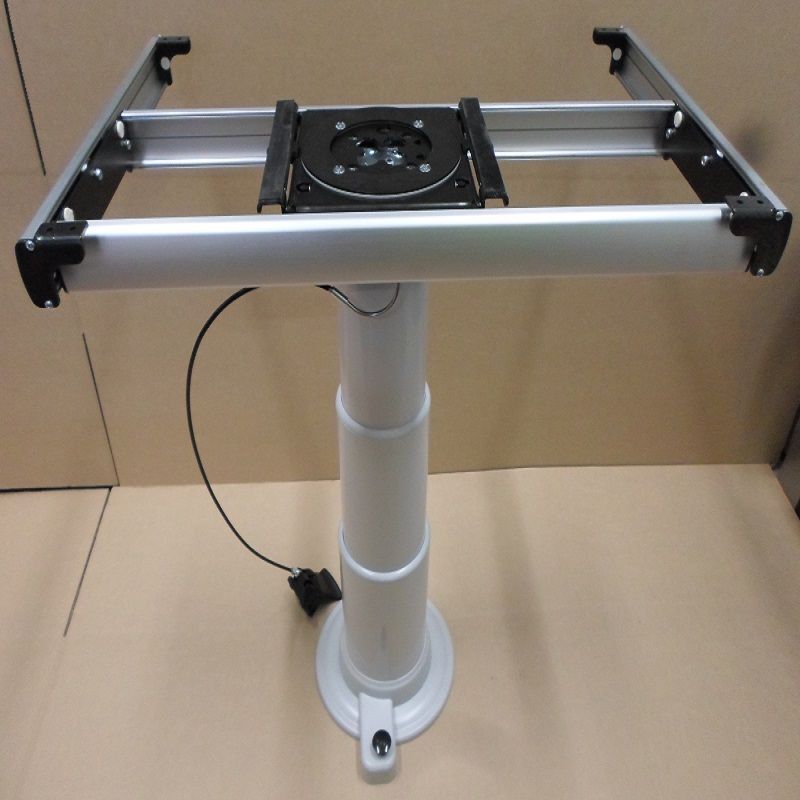

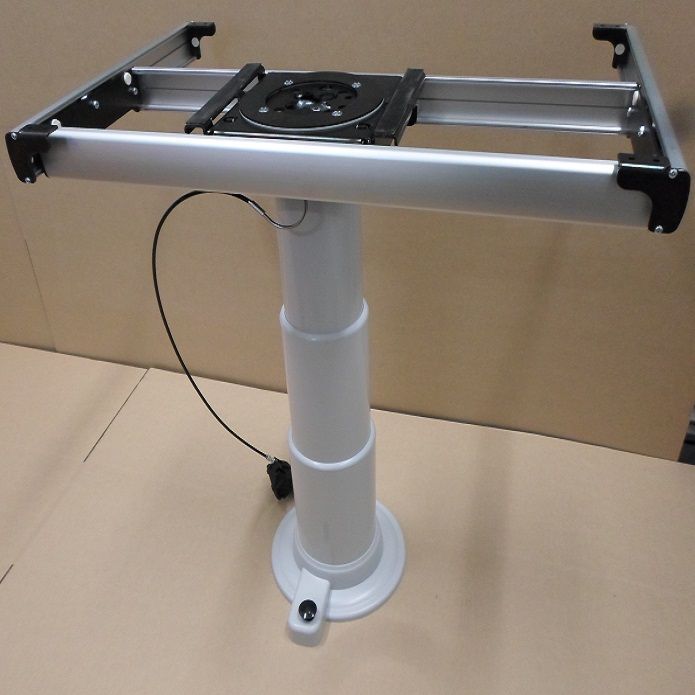

The Nuova Mapa is a fully adjustable telescopic table leg with turntable and slide system, that can also convert to a bed!

The bed position is factory set at 330mm, (can be adjusted from 330mm to 410mm) this measurement is taken from the underside of the table top to the floor.

Features:

  • Easy to install by screwing the base plate onto the floor (screws not supplied)

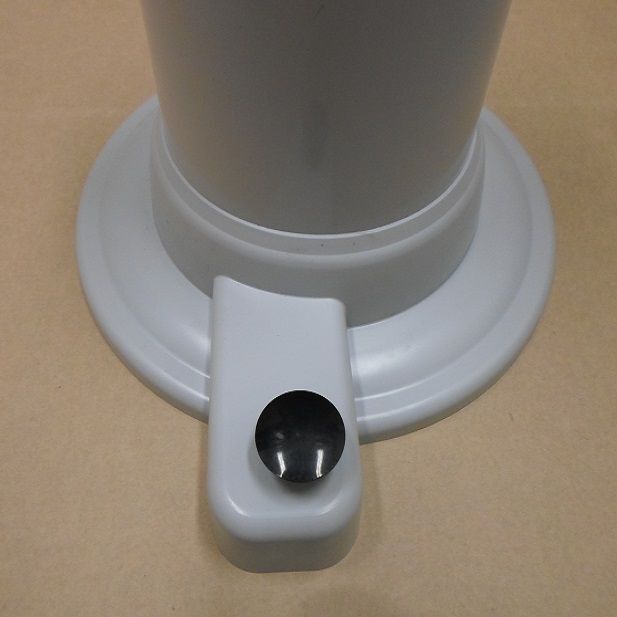

  • Foot button makes it easy to raise and lower
  • Undermount release lever allows table top to slide and swivel into required position
  • Table top can move left or right, forward or back and swivel
  • Metal bearings make for a smooth sliding action
  • Aluminium sliding mechanism
  • Solid and robust design
  • Can be adjusted from 330mm to 410mm
  • Designed and manufactured in Italy

Specifications:

  •  Maximum height (from floor to underside of table): 710mm
  •  Lowest height: 345mm
  •  Table top bracket measurements: 700mm x 440mm
  •  Base diameter: 250mm
  •  Weight rating while in bed position is 100Kg.
  •  Pre-set bed height of 330mm and can adjust up to 410mm
  •  Table will slide
  •  100mm to the front from centre
  •  100mm to the back from centre
  •  200mm to the left from centre
  •  200mm to the right from centre
  •  Unit Weight: 15kgs

* Table top & fixing screws not included

(CRV-400-02600)
