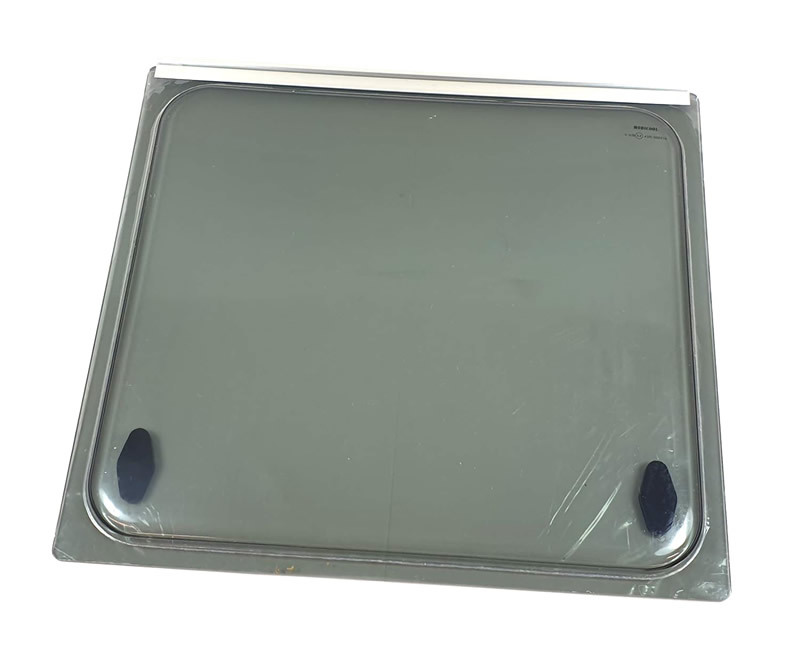

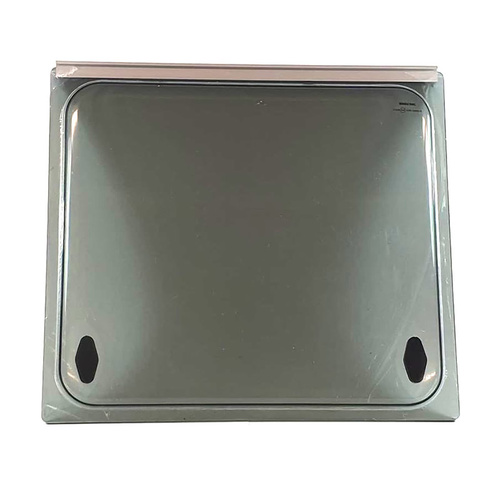

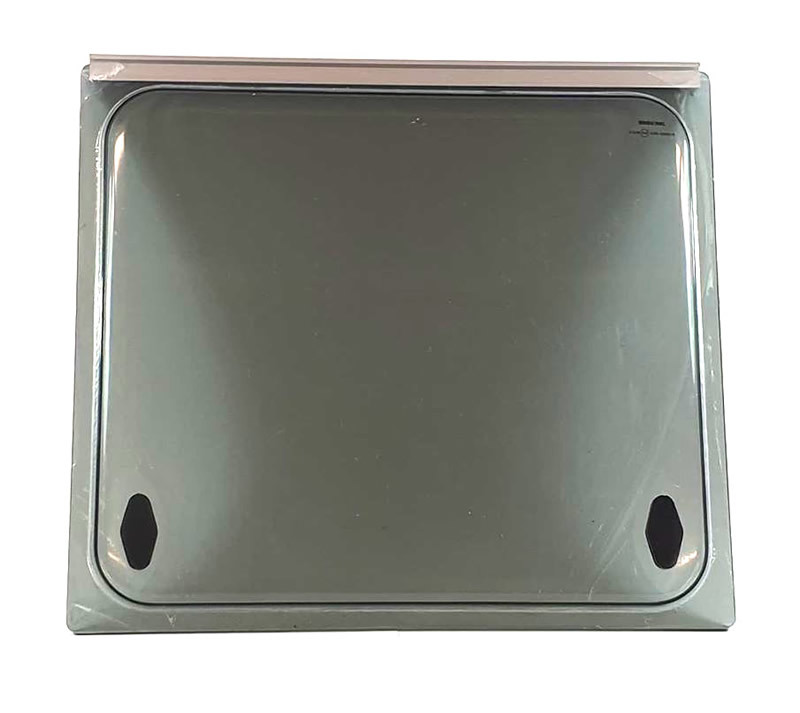

Replacement window blade for your Maygood/Mobicool window.

Features:

  • tinted and made with a double-glazed acrylic panel
  • Blade only - no additional fixtures included
  • Suits old and new style frames

Not sure which size window blade to order? Check out our guide on how best to determine the replacement blade for your Seitz/Dometic window >>

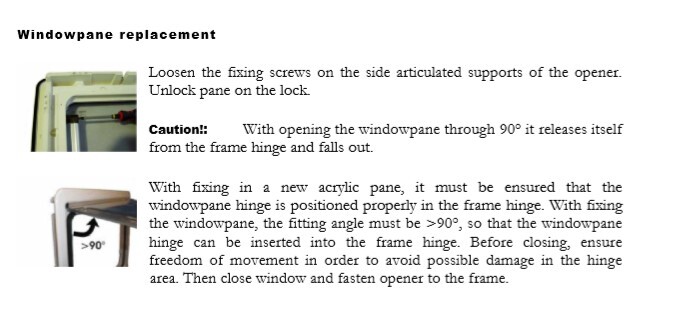

Replacing your tinted blade

Please see details below and image above

  • Open all window latches
  • Undo the 2 screws fastening the stay to the external frame
  • Open window to approx. 100-120 degrees (at this point the two hinge pieces will separate)
  • Exchange stays and latches from old blade to new blade.
  • Hold new blade at same angle that old blade was removed at and engage the two hinge pieces (ensure they are properly engaged before closing window to prevent damage to hinge pieces)
  •  Fasten 2 screws for the stays back into the external frame
  • Completely close window and latches

(DOS-MMTWB)

Note: Left/right table scroll in mobile view
Part Number Name Pricing Buy

DOS-DM-W500350-003

Maygood / Mobicool Tinted Window Blade – 500mm (W) x 350mm (H)

$174.01

DOS-DM-W500450-003

Maygood / Mobicool Tinted Window Blade – 500mm (W) x 450mm (H)

$181.69

DOS-DM-W500500-003

Maygood / Mobicool Tinted Window Blade – 500mm (W) x 500mm (H)

$188.29

DOS-DM-W500550-003

Maygood / Mobicool Tinted Window Blade – 500mm (W) x 550mm (H)

$188.29

DOS-DM-W700800-003

Maygood / Mobicool Tinted Window Blade –700mm (W) x 800mm (H)

$314.51

DOS-DM-W900450-003

Maygood / Mobicool Tinted Window Blade – 900mm (W) x 450mm (H)

$236.12

DOS-DM-W900500-003

Maygood / Mobicool Tinted Window Blade – 900mm (W) x 500mm (H)

$236.12

DOS-DM-W900550-003

Maygood / Mobicool Tinted Window Blade – 900mm (W) x 550mm (H)

$251.42

DOS-DM-W900900-003

Maygood / Mobicool Tinted Window Blade – 900mm (W) x 900mm (H)

$337.25

DOS-DM-W1000800-003

Maygood / Mobicool Tinted Window Blade – 1000mm (W) x 800mm (H)

$314.51

DOS-DM-W1100450-003

Maygood / Mobicool Tinted Window Blade – 1100mm (W) x 450mm (H)

$236.12

DOS-DM-W1100550-003

Maygood / Mobicool Tinted Window Blade – 1100mm (W) x 550mm (H)

$267.70

DOS-DM-W1200350-003

Maygood / Mobicool Tinted Window Blade – 1200mm (W) x 350mm (H)

$236.12

DOS-DM-W1200500-003

Maygood / Mobicool Tinted Window Blade – 1200mm (W) x 500mm (H)

$267.70

DOS-DM-W1200800-003

Maygood / Mobicool Tinted Window Blade – 1200mm (W) x 800mm (H)

$329.82

DOS-DM-W1450550-003

Maygood / Mobicool Tinted Window Blade – 1450mm (W) x 550mm (H)

$314.51

DOS-DM-W1530380-003

Maygood / Mobicool Tinted Window Blade – 1530mm (W) x 380mm (H)

$314.51
